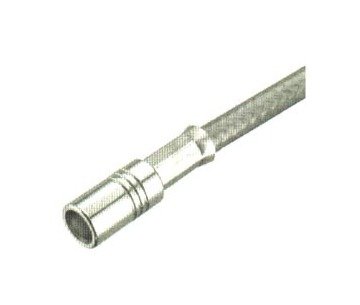

HUBER+SUHNER MCX 50 Ohm Straight Cable Jack, Female, Bulk 100 pcs.

Name: HUBER+SUHNER MCX 50 Ohm Straight Cable Jack, Female, Bulk 100 pcs.
Brand: C. W. Swift & Associates, Inc.
SKU: MCX-46a1ff
Price: 199.99 USD
Availability: OutOfStock

SKU:MCX-46a1ff

Upgrade RF connectivity with HUBER+SUHNER MCX 50 Ohm Straight Cable Jack. Durable, high-performance connector meeting institutional standards.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your RF connectivity with the HUBER+SUHNER MCX 50 Ohm Straight Cable Jack, tailored for demanding environments. Crafted from durable brass and beryllium copper, this connector ensures top-notch performance with low contact resistance and high durability. With an extensive temperature range of -67 to 311 degrees F, it meets rigorous institutional standards for impedance, RF leakage, and insulation resistance, making it ideal for critical applications.

Product Specifications

Specifications Body Material

Brass

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight bulkhead

Specifications Connection

female

Specifications Connector Series

MCX

Specifications Contact Captivation Lbs

>2.3

Specifications Crimp Ferrule Material

Copper

Specifications Dielectic Withstanding Voltage Sea Level V Rms

>750

Specifications Disengagement Force Lbs

1.8 to 4.5

Specifications Durability Matings

>500

Specifications Engagement Force Lbs

<5.6

Specifications Frequency Ghz

DC...6

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>100000

Specifications Insulator Material

PTFE or PFA

Specifications Outer Contacts Jack

Brass

Specifications Outer Contacts Plug

Beryllium copper, hardened

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Brass

Specifications Plating Body

SUCOPLATE

Specifications Rf Leakage Connectors For Flexible Cables Db

>60

Specifications Rf Leakage Connectors For Semi Rigid Cables Db

>70

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-67 to 311

Specifications Working Voltage 70000 Ft V Rms

>42

Specifications Working Voltage Sea Level V Rms

>170
