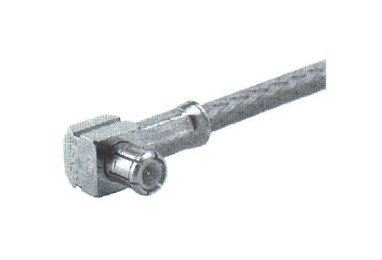

Huber+Suhner MCX Right Angle Cable Plugs (Male)
Huber+Suhner MCX Right Angle Cable Plugs (Male)
SKU:MCX-13a58b
Huber+Suhner MCX 50 ohm Right Angle Cable Plug for reliable RF signal transmission. Durable, high-performance connector for flexible cables.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Huber+Suhner MCX Right Angle Cable Plugs (Male)
$25.99
Quantity: 1
Claim Your Seller Account
Huber+Suhner MCX Right Angle Cable Plugs (Male)
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Huber+Suhner MCX 50 ohm Right Angle Cable Plug is a high-performance connector designed for reliable RF signal transmission. With an impedance of 50 Ohms, this plug operates at frequencies from DC to 6 GHz, ensuring seamless connectivity with minimal RF leakage. Constructed with durable materials like brass, beryllium copper, and PTFE/PFA insulators, it offers exceptional durability with over 500 matings and a wide temperature range from -67 to 311 degrees Fahrenheit. Suitable for flexible cables, this male right angle plug guarantees superior performance in demanding applications.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
