HUBER+SUHNER Panel Jack SMA Launchers with Interchangeable Transition Pins

Name: HUBER+SUHNER Panel Jack SMA Launchers with Interchangeable Transition Pins
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-dbc103
Price: 69.99 USD
Availability: OutOfStock

SKU:SMA-dbc103

Enhance your connectivity with HUBER+SUHNER Panel Jack SMA Launchers, offering precise performance and durability in a recessed design.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

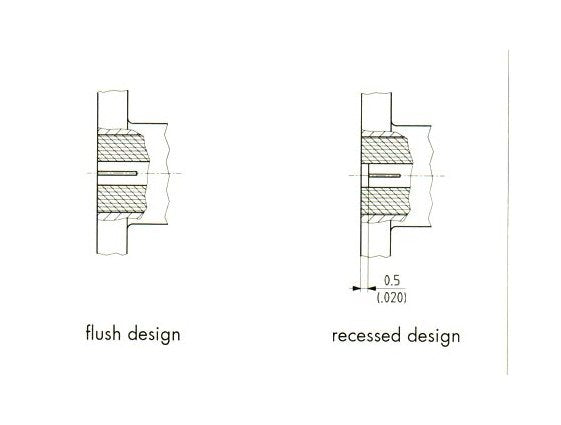

The HUBER+SUHNER Panel Jack SMA Launchers with interchangeable transition pins offer exceptional versatility and precision in connectivity solutions. Featuring recessed or flush rear contacts and various insulator and housing options, these launchers ensure reliable performance in diverse applications. With specifications including a cable dielectric diameter of .066/.117 inches, 50-ohm impedance, and a frequency range of DC - 18 GHz, these SMA launchers are ideal for demanding environments requiring high-quality connections. The stainless steel plating body guarantees durability, while the female connection and recessed design further enhance usability and efficiency.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

recessed design launcher

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

stainless steel

HUBER+SUHNER Panel Jack SMA Launchers with Interchangeable Transition Pins
