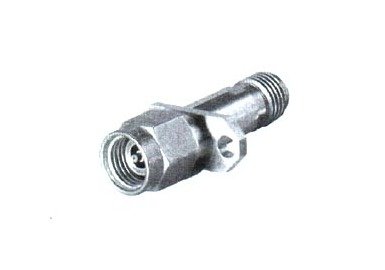

The HUBER+SUHNER PC 3.5 Precision Panel Adaptors are designed for seamless integration within PC 3.5 Series configurations. With an impedance of 50 Ohms and a frequency range up to 33 GHz, these adaptors ensure reliable RF connections. Featuring durable stainless steel bodies, beryllium-copper center contacts, and silicone rubber gaskets, they offer exceptional performance in demanding environments. With compliance to industry standards and exceptional technical specifications, these adaptors meet the stringent requirements of government and institutional buyers.
Product Specifications
Specifications Body
stainless steel
Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
panel
Specifications Connection
male-female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Coupling Nut Retention Force Lbs
>60.7
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Vswr 10 16 Ghz F
1.12
Specifications Vswr 16 20 Ghz F
1.16
Specifications Vswr 4 10 Ghz F
1.07
Specifications Vswr Dc 4 Ghz F
1.03
Specifications Working Voltage Sea Level V Rms
<250/<335
