High-performance PC 3.5 Precision Subminiature Straight Adaptors Within-Series for reliable plug-jack interconnections up to 33 GHz.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

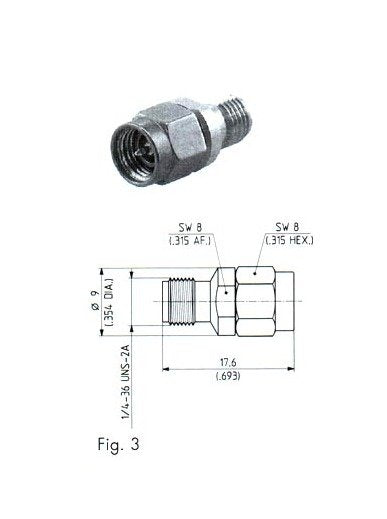

The HUBER+SUHNER PC 3.5 Precision Subminiature Straight Adaptors Within-Series are expertly crafted adaptors designed for precise plug-jack interconnections. With an impedance of 50 Ohms and a frequency range of DC to 33 GHz, these adaptors ensure reliable RF performance with RF leakage of over 100 dB. Built to withstand demanding environments, they feature durable stainless steel bodies, beryllium-copper centre contacts, and silicone rubber gaskets. Meeting stringent institutional standards, these adaptors guarantee exceptional performance and longevity, making them ideal for government and institutional procurement needs.

Product Specifications

Specifications Body

stainless steel

Specifications Body Material

stainless steel

Specifications Cable Entries

brass

Specifications Centre Contacts

beryllium-copper, hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

male-female

Specifications Connector Series

PC 3.5

Specifications Contact Captivation Lbs

>6.1

Specifications Coupling Nut Retention Force Lbs

>60.7

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750/1000

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...33

Specifications Gaskets

silicone rubber

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>50000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Rf Leakage Db

>100

Specifications Support Beads

polystyrene, crosslinked

Specifications Temperature Range Degrees F

-85 to 194

Specifications Vswr 18 26 Ghz F

1.15

Specifications Vswr Dc 18 Ghz F

1.08

Specifications Working Voltage Sea Level V Rms

<250/<335
