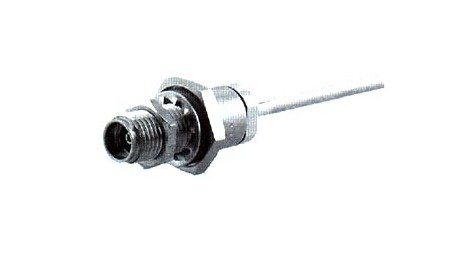

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

SKU:PC3-446178

High-performance PC 3.5 Straight Bulkhead Cable Plugs for reliable high-frequency connections in demanding environments.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

$24.99

Quantity: 1

Claim Your Seller Account

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs, Female

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Huber+Suhner PC 3.5 Straight Bulkhead Cable Plugs offer exceptional performance and reliability for high-frequency applications. With an impedance of 50 Ohms, frequency range up to 33 GHz, and RF leakage surpassing 100 db, these connectors ensure seamless signal transmission. Built to withstand harsh environments, they feature a stainless steel body, beryllium-copper center contacts, and silicone rubber gaskets. Meeting durability standards of over 500 matings, these connectors are ideal for demanding industrial and institutional settings.

Product Specifications

Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Coupling Nut Retention Force Lbs
>60.7
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Mounting Hole
ML 35
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Working Voltage Sea Level V Rms
<250/<335
