HUBER+SUHNER SMA 50 ohm Male Termination Plug

Name: HUBER+SUHNER SMA 50 ohm Male Termination Plug
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-7207c1
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-7207c1

High-quality 50 ohm SMA male termination plug for signal integrity and impedence matching

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

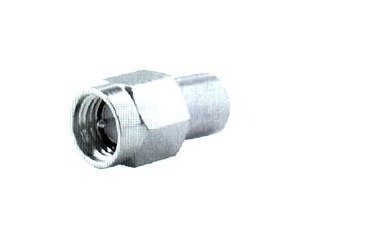

The HUBER+SUHNER SMA 50 ohm Male Termination Plug is a high-quality termination solution designed for SMA connectors. With a gold-plated body and low VSWR across different frequency ranges, this termination ensures reliable signal integrity and performance. Ideal for applications requiring precise impedence matching and signal termination, this plug meets stringent industry standards for quality and durability.

Product Specifications

Specifications Configuration

termination

Specifications Connection

male

Specifications Connector Series

SMA

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

gold

Specifications Vsrw 14 18 Ghz F

1.25

Specifications Vswr 10 14 Ghz F

1.15

Specifications Vswr 4 10 Ghz F

1.1

Specifications Vswr Dc 4 Ghz F

1.05
