HUBER+SUHNER SMA Launchers with Interchangeable Transition Pins

Name: HUBER+SUHNER SMA Launchers with Interchangeable Transition Pins
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-447cc2
Price: 49.99 USD
Availability: OutOfStock

SKU:SMA-447cc2

Explore the HUBER+SUHNER SMA Launchers for reliable connectivity and performance in demanding applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

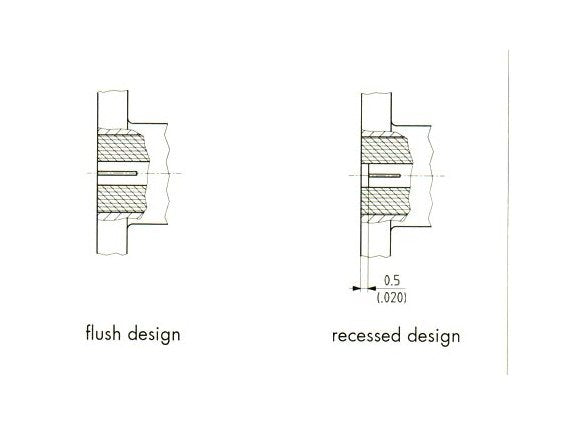

The HUBER+SUHNER SMA Launchers with Interchangeable Transition Pins offer high-quality performance for demanding applications. These launchers feature interchangeable transition pins, insulators, and housings with recessed or flush rear contacts, ensuring versatile connectivity options. With specifications including cable dielectric dia. ranging from .066 to .117 inches, 50-ohm impedance, and a frequency range of DC - 18 GHz, these launchers are designed to meet the stringent requirements of both consumer and institutional buyers. The stainless steel plating body and female connection with a flush design launcher enhance durability and ease of use, making them ideal for a wide range of applications.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

flush design launcher

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

stainless steel

HUBER+SUHNER SMA Launchers with Interchangeable Transition Pins
