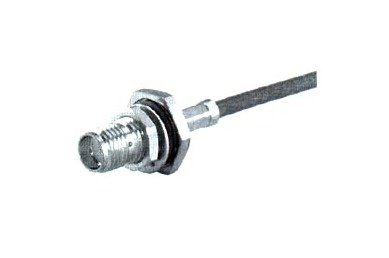

HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs (Female)
HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs (Female)
SKU:SMA-9fbd44
High-performance HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs for reliable RF connectivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs (Female)
$34.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs (Female)
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HUBER+SUHNER SMA RG316 Straight Bulkhead Cable Plugs (Female) are meticulously engineered connectors designed to meet the demanding needs of high-frequency RF applications. With a durable body material of beryllium copper, hardened pin and socket contacts, and PTFE/PFA insulator material, these cable plugs ensure reliable performance in temperature extremes from -85 to 329 degrees F. They feature a frequency range of DC - 18 GHz, impedance of 50 ohms, and RF-Leakage of over 60 dB, making them ideal for critical signal transmission in various environments. With compliance to rigorous industry standards, these connectors are the top choice for professionals seeking quality and reliability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 20
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
