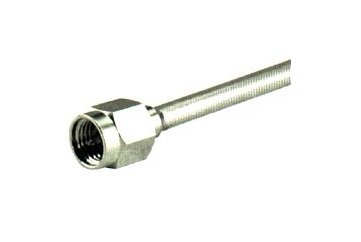

HUBER+SUHNER SMA Straight Cable Plugs (Male)
HUBER+SUHNER SMA Straight Cable Plugs (Male)
SKU:SMA-2feba4
Premium HUBER+SUHNER SMA Male Cable Plugs for high-frequency applications up to 26.5GHz, with robust construction and exceptional signal integrity.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
HUBER+SUHNER SMA Straight Cable Plugs (Male)
$99.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER SMA Straight Cable Plugs (Male)
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HUBER+SUHNER SMA Straight Cable Plugs (Male) are precision-engineered connectors designed to deliver exceptional performance in high-frequency applications up to 26.5GHz. Featuring a robust construction with beryllium copper and hardened materials, these plugs ensure reliable signal transmission with low contact resistance. The PTFE/PFA insulator material provides excellent dielectric properties and withstands voltage up to 1500V rms. With gold plating for enhanced durability and RF-leakage of over 100dB, these plugs are ideal for demanding environments. Whether for military, aerospace, or telecommunications use, these SMA connectors meet stringent industry standards for quality and reliability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5
Specifications Cable Type
semi-rigid
Specifications Configuration
without pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
26.5
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
