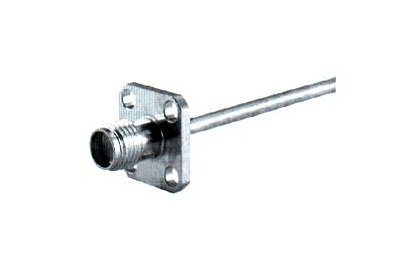

HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)
HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)
SKU:SMA-fab54c
Reliable HUBER+SUHNER SMA Straight Panel Cable Plugs (Female) for up to 18 GHz applications, featuring low RF leakage & high durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HUBER+SUHNER SMA Straight Panel Cable Plugs (Female) are meticulously engineered to meet the demanding needs of high-frequency applications up to 18 GHz. With a robust design featuring beryllium copper construction and PTFE/PFA insulator, these connectors ensure efficient signal transmission with low RF leakage and minimal contact resistance. The gold-plated body offers corrosion resistance for long-term reliability, while the hardened components guarantee durability in extreme temperature ranges from -85°F to 329°F. Ideal for SMA Cable Connectors, these plugs are designed for precision and performance in critical RF environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y2
Specifications Cable Type
semi-rigid
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA

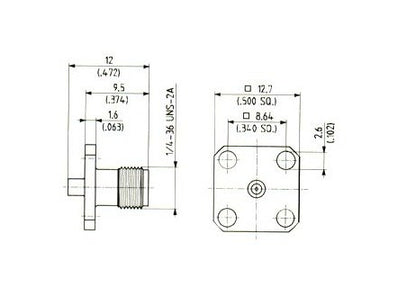

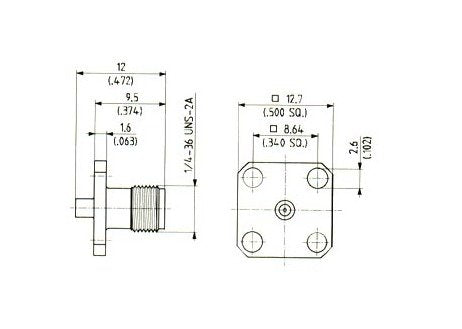

Specifications Mounting Hole
ML 19
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
