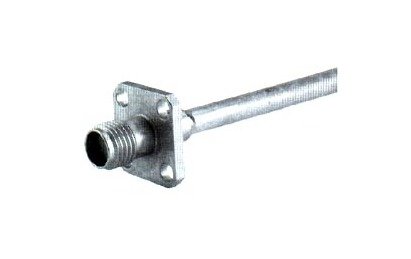

HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)

Name: HUBER+SUHNER SMA Straight Panel Cable Plugs (Female)
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-833c30
Price: 74.99 USD
Availability: OutOfStock

SKU:SMA-833c30

High-performance HUBER+SUHNER SMA Straight Panel Cable Plugs (Female) for up to 18 GHz applications, ideal for government and institutional procurements.

$74.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The HUBER+SUHNER SMA Straight Panel Cable Plugs (Female) from the EZ141 product line offer exceptional performance and reliability for high-frequency applications up to 18 GHz. With a durable construction featuring beryllium copper contacts and PTFE/PFA insulators, these connectors ensure low RF leakage, high impedance consistency, and superior electrical properties. Ideal for demanding environments, they provide a secure connection with minimal signal loss, meeting the stringent requirements of government and institutional procurements.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Y5, Y12

Specifications Cable Type

semi-rigid

Specifications Configuration

straight panel

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<85/<125

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<335/<500

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

1000/1500

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>100

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

250/375
