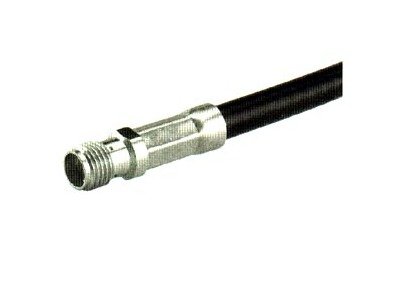

HUBER+SUHNER Straight Cable Jack (Female) RG58/400 - SMA Subminiature Connector

Name: HUBER+SUHNER Straight Cable Jack (Female) RG58/400 - SMA Subminiature Connector
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-72ceeb
Price: 29.99 USD
Availability: OutOfStock

SKU:SMA-72ceeb

Enhance connectivity with HUBER+SUHNER Straight Cable Jack - RG58/400, female connector for high-frequency applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your connectivity with the HUBER+SUHNER Straight Cable Jack, designed to meet the demanding requirements of RG58/400 cables. With an impedance of 50 ohms, frequency range up to 18 GHz, and superior RF-Leakage suppression over 60 dB, this connector ensures reliable transmission in high-frequency applications. Built with beryllium copper and hardened materials, it offers exceptional durability. Ideal for applications needing a working voltage up to 70,000 ft., this connector boasts PTFE/PFA insulator materials for enhanced performance in extreme temperatures from -85°F to 329°F.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Configuration

straight

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<65/<85

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<250/<335

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

750/1000

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

single

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

gold

Specifications Rf Leakage Db

>60

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

190/250
