HUBER+SUHNER Straight Cable Plugs (male) - RG 178, 316, K02252D
HUBER+SUHNER Straight Cable Plugs (male) - RG 178, 316, K02252D
SKU:SMA-98c88a
Premium HUBER+SUHNER Straight Cable Plugs for high-frequency RF connections. Low resistance, high durability, and wide compatibility.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HUBER+SUHNER Straight Cable Plugs (male) - RG 178, 316, K02252D
$49.99
Quantity: 1
Claim Your Seller Account
HUBER+SUHNER Straight Cable Plugs (male) - RG 178, 316, K02252D
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

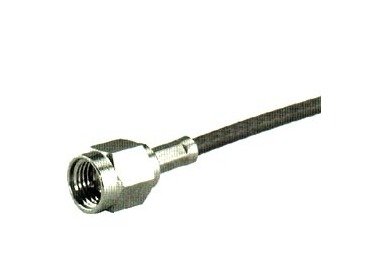

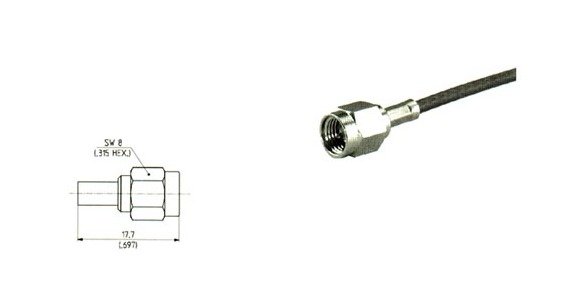

Enhance your RF connections with the HUBER+SUHNER Straight Cable Plugs. These male connectors feature a wide frequency range of DC to 18 GHz, low contact resistance, and high dielectric withstanding voltage. Constructed with beryllium copper and PTFE/PFA insulator, these plugs ensure reliable performance in temperatures ranging from -85°F to 329°F. With SMA connection captivation, these plugs offer exceptional RF-leakage suppression and corrosion resistance. Ideal for SMA Cable Connectors up to 18 GHz.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
