HX Series Fluoropolymer Heaters
HX Series Fluoropolymer Heaters
SKU:HEA-9275be
Efficiently heat with precision using HX Series Fluoropolymer Heaters. With 4000W power and adaptable thermal protectors, ensure reliable heating solutions.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
HX Series Fluoropolymer Heaters
$399.99
Quantity: 1
Claim Your Seller Account
HX Series Fluoropolymer Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

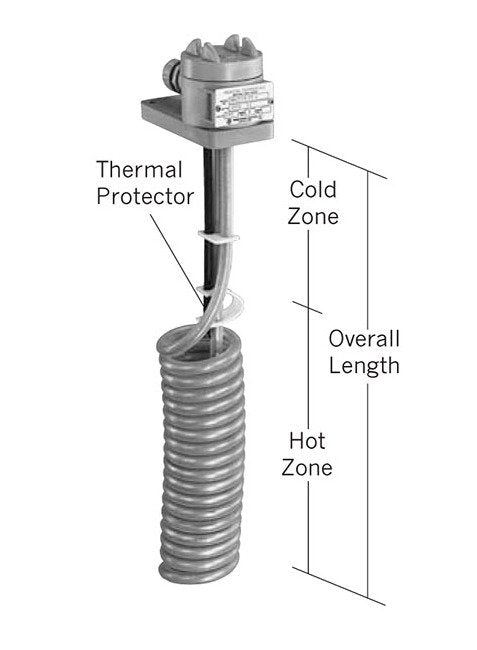

The HX Series Fluoropolymer Heaters are specifically designed for efficient heating applications with a power rating of 4000W and a watt density of 10 W/in². These heaters operate at 480V and feature a hot zone of 20" for precise heating needs. With options for different thermal protectors and guard materials, these heaters provide versatility for various solutions. Manufactured by Process Technology, these heaters are CE, CSA, and UL Listed for quality assurance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).GUARDS SOLD SEPARATELY
Specifications Guard Model Number
HX/3HX29G
Specifications Hot Zone
20 " | 508 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
40 " | 1016 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single
Specifications Series
HX Series
Specifications Shipping Weight
15.0 Pound
Specifications Std Cold Zone
9 " | 230 mm
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
