HX Series PTFE Heaters - 3000W, 480V, Vertical Design
HX Series PTFE Heaters - 3000W, 480V, Vertical Design
SKU:HEA-667801
Powerful HX Series PTFE Heaters - 3000W, 480V, Single Phase. CE, CSA, UL Listed.
Regular price
$399.00
Regular price
Sale price
$399.00
Unit price
per
Initiate Order
HX Series PTFE Heaters - 3000W, 480V, Vertical Design
$399.00
Quantity: 1
Claim Your Seller Account
HX Series PTFE Heaters - 3000W, 480V, Vertical Design
$399.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

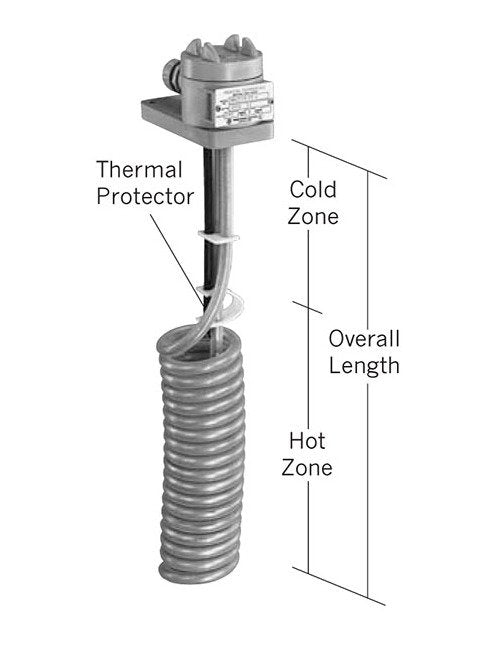

The HX Series Spiral Fluoropolymer (PTFE) Heaters offer exceptional performance with a power output of 3000W and a watt density of 10 W/in². Designed for single-phase use, these heaters boast a hot zone of 16 inches, an overall length of 23 inches, and options for longer vertical lengths and flexible risers. Certified by CE, CSA, and UL, they come with replaceable thermal protectors for varying solution temperatures, making them ideal for institutional and industrial applications requiring precision and safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).GUARDS SOLD SEPARATELY
Specifications Guard Model Number
HX/3HX23G
Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
40 " | 1016 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single
Specifications Series
HX Series
Specifications Shipping Weight
13.0 Pound
Specifications Std Cold Zone
7 " | 180 mm
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
