HX Series PTFE Heaters - 500W, 120V
HX Series PTFE Heaters - 500W, 120V
SKU:HEA-b2bd0c
Efficient and reliable HX Series PTFE Heaters - Ideal for precise heating applications. Various thermal protector options available.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
HX Series PTFE Heaters - 500W, 120V
$299.99
Quantity: 1
Claim Your Seller Account
HX Series PTFE Heaters - 500W, 120V
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

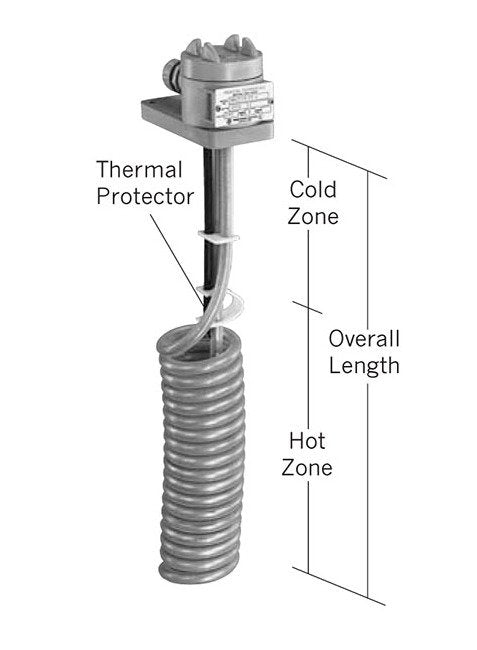

The HX Series Spiral Fluoropolymer (PTFE) Heaters offer efficient heating with a wattage of 500W and watt density of 10 W/in². Designed for single-phase use, these heaters feature a hot zone of 5" and an overall length of 11". With various thermal protector options and certifications like CE, CSA, and UL Listed, these heaters ensure safe and reliable operation. Optional PTFE guards make them suitable for solutions exceeding 180°F.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).GUARDS SOLD SEPARATELY
Specifications Guard Model Number
HX/3HX11G
Specifications Hot Zone
5 " | 127 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
41 " | 1041 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Series
HX Series
Specifications Shipping Weight
6.0 Pound
Specifications Std Cold Zone
6 " | 155 mm
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
