HXF Series Fluoropolymer Heaters - 5000W, 480V
HXF Series Fluoropolymer Heaters - 5000W, 480V
SKU:HEA-e27610
Efficient 5000W Fluoropolymer (PTFE) Heaters with CE, CSA, & UL Listings. Ideal for industrial process heating.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
HXF Series Fluoropolymer Heaters - 5000W, 480V
$699.99
Quantity: 1
Claim Your Seller Account
HXF Series Fluoropolymer Heaters - 5000W, 480V
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

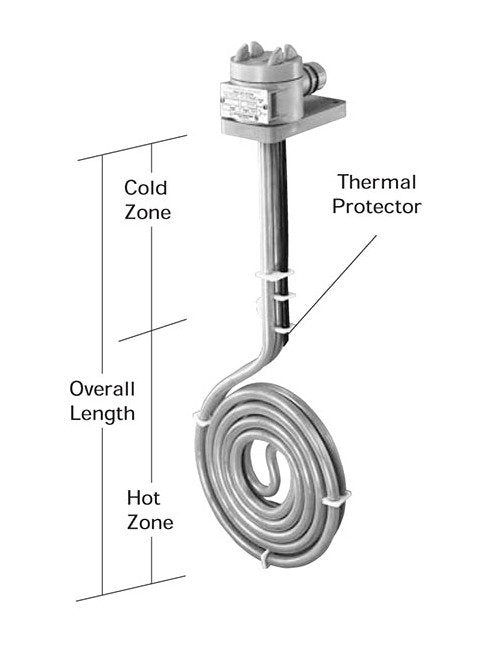

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial applications. With a wattage of 5000W and a watt density of 10 W/in², these heaters are ideal for process heating tasks. The 13" hot zone combined with a 12" diameter ensures optimal heat distribution. Featuring CE, CSA, and UL listings, these single-phase heaters come with various thermal protector options for different solution temperatures. Recommended for use with polypropylene guards or PTFE guards for specific corrosive solutions, these heaters are a reliable choice for controlled heating requirements. Consult the factory for longer vertical lengths and flexible risers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
12 " | 305 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF12-35G
Specifications Hot Zone
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
18.0 Pound
Specifications Std Cold Zone
22 " | 559 mm
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
