HXF Series Low Profile PTFE Heaters
HXF Series Low Profile PTFE Heaters
SKU:HEA-7e988a
Efficient 2000W PTFE Heaters with 10 W/in² watt density, CE/CSA/UL Listed, ideal for precise heating applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
HXF Series Low Profile PTFE Heaters
$289.99
Quantity: 1
Claim Your Seller Account
HXF Series Low Profile PTFE Heaters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

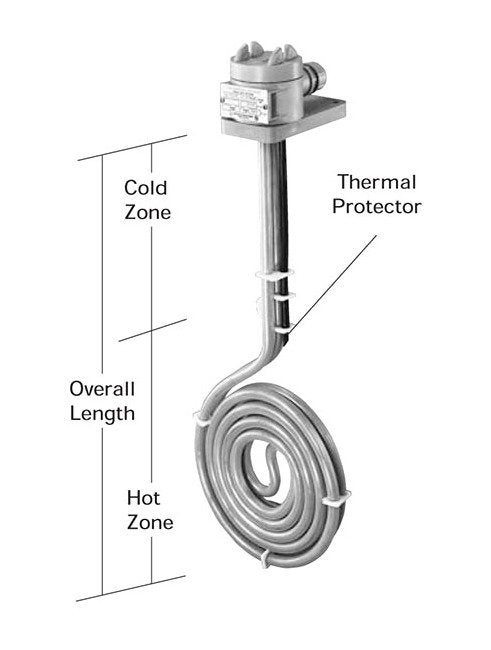

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for precise heating applications, delivering 2000W at 240V with a watt density of 10 W/in². Featuring a 9" hot zone and stainless steel sheath construction, these heaters ensure efficient and reliable performance. With certifications including CE, CSA, and UL Listed, the HXF Series guarantees compliance with industry standards for quality and safety. The option for different thermal protectors and guard models provides versatility for various solutions.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
8 " | 203 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF08-17G
Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
8.0 Pound
Specifications Std Cold Zone
8 " | 203 mm
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
