HXF Series PTFE Heaters - 4000W, Single Phase
HXF Series PTFE Heaters - 4000W, Single Phase
SKU:HEA-a8b70c
High-performance HXF Series PTFE Heaters - 4000W, Single Phase for efficient heating solutions in a durable fluoropolymer construction.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
HXF Series PTFE Heaters - 4000W, Single Phase
$589.99
Quantity: 1
Claim Your Seller Account
HXF Series PTFE Heaters - 4000W, Single Phase
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are expertly designed for efficient heating applications. With a wattage of 4000W and a watt density of 10 W/in², these heaters provide reliable performance. The fluoropolymer construction ensures durability, while the welded ground wire enhances safety. Certified by CE, CSA, and UL, these heaters meet stringent industry standards. Ideal for a wide range of applications, excluding electroless chemistry and phosphoric acid, these heaters offer superior performance for institutional and consumer needs.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
11 " | 279 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF11-29G

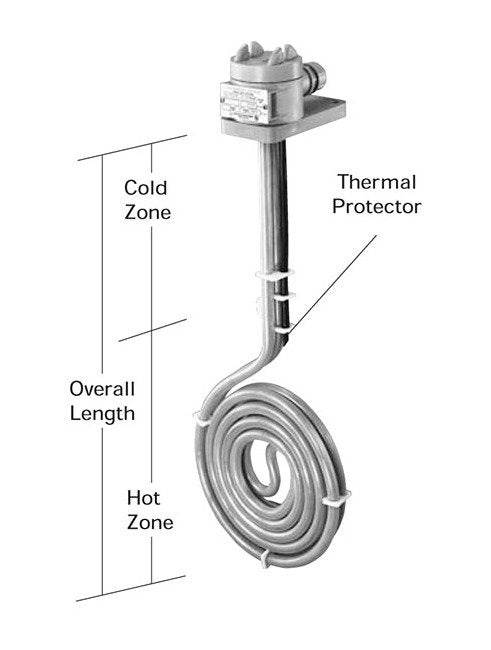

Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
15.0 Pound
Specifications Std Cold Zone
17 " | 432 mm
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
