HXF Series PTFE Heaters - Process Technology Electric Immersion Heater
HXF Series PTFE Heaters - Process Technology Electric Immersion Heater
SKU:HEA-51e3c7
High-performing 1000W HXF Series PTFE Heaters by Process Technology - CE, CSA, UL Listed. Guards recommended for optimal application.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
HXF Series PTFE Heaters - Process Technology Electric Immersion Heater
$289.99
Quantity: 1
Claim Your Seller Account
HXF Series PTFE Heaters - Process Technology Electric Immersion Heater
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

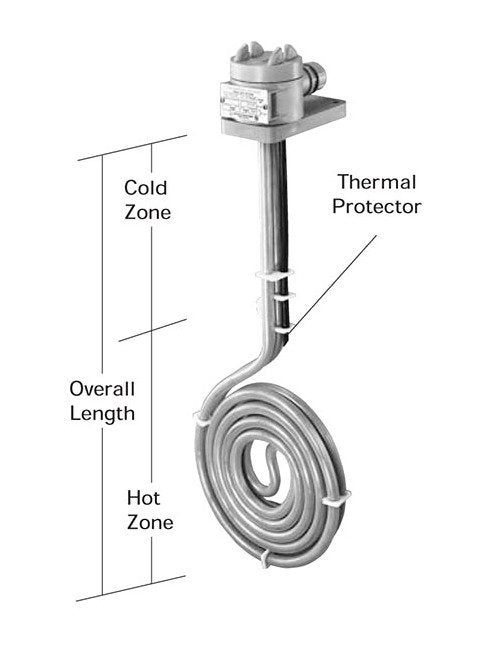

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters by Process Technology are a reliable and efficient heating solution designed for industrial applications. With 1000W power and a watt density of 10 W/in², these heaters operate at 120V. The durable fluoropolymer construction ensures chemical resistance while the stainless steel sheath provides robust protection. Featuring Certifications such as CE, CSA, and UL Listed, these heaters meet stringent industry standards for safety and performance. Guards recommended for specific applications for optimal performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
6 " | 152 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF06-14G
Specifications Hot Zone
7 " | 178 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
14 " | 356 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
7.0 Pound
Specifications Std Cold Zone
7 " | 178 mm
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
