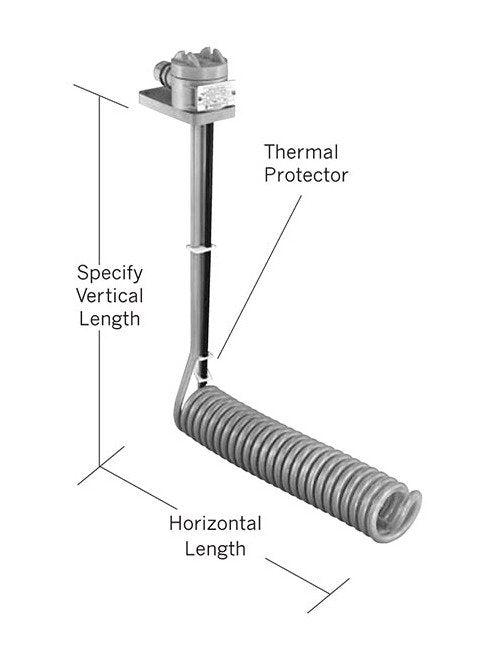

The HXL Series Spiral L-Shaped Fluoropolymer (PTFE) Heaters are meticulously designed for industrial applications requiring efficient and reliable heat transfer. With a power rating of 2000W and a Watt Density of 10 W/in², these heaters provide exceptional performance. The hot zone extends up to 12", while the standard vertical length is 18". They are constructed with durable Fluoropolymer material, ensuring longevity and resistance to corrosive environments. Recommended guards enhance safety, with options tailored for specific solutions. Certified by CE, CSA, and UL, these heaters meet stringent quality and safety standards, ideal for institutional and government procurement needs.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXL12-R*G
Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
40 " | 1016 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXL Series
Specifications Shipping Weight
8.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
120 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
