HXL Series Fluoropolymer PTFE Heaters - 3000W, 240V
HXL Series Fluoropolymer PTFE Heaters - 3000W, 240V
SKU:HEA-93ca06
Efficient HXL Series Fluoropolymer PTFE Heaters for industrial heating. 3000W, 240V. CE, CSA, UL certified.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
HXL Series Fluoropolymer PTFE Heaters - 3000W, 240V
$329.99
Quantity: 1
Claim Your Seller Account
HXL Series Fluoropolymer PTFE Heaters - 3000W, 240V
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

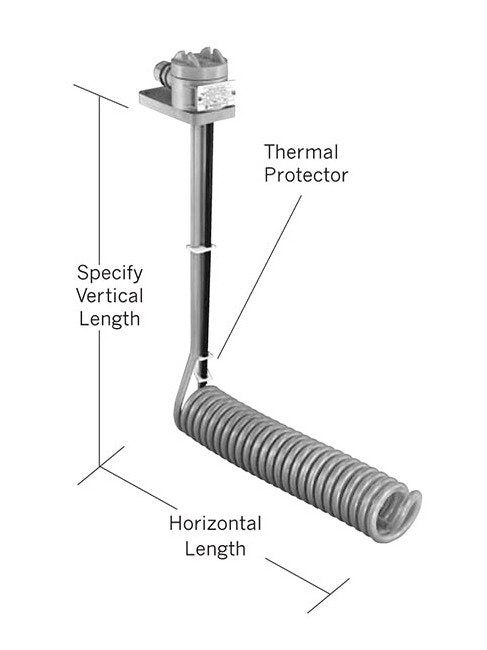

The HXL Series Spiral L-Shaped Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial applications. With a wattage of 3000W and 240V voltage, these heaters deliver reliable performance. Featuring a hot zone of 17 inches and a watt density of 10 W/in², they ensure uniform heat distribution. Recommended guards ensure safety, with options for specific chemical solutions. Certified by CE, CSA, and UL, these heaters meet stringent quality standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXL17-R*G
Specifications Hot Zone
17 " | 432 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
40 " | 1016 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXL Series
Specifications Shipping Weight
13.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
