HXL Series PTFE Spiral L-Shaped Heaters
HXL Series PTFE Spiral L-Shaped Heaters
SKU:HEA-cb302f
Powerful HXL Series PTFE heaters, 9000W, 10 W/in², 240V, for efficient heating solutions. CE, CSA, UL Listed.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
HXL Series PTFE Spiral L-Shaped Heaters
$599.99
Quantity: 1
Claim Your Seller Account
HXL Series PTFE Spiral L-Shaped Heaters
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

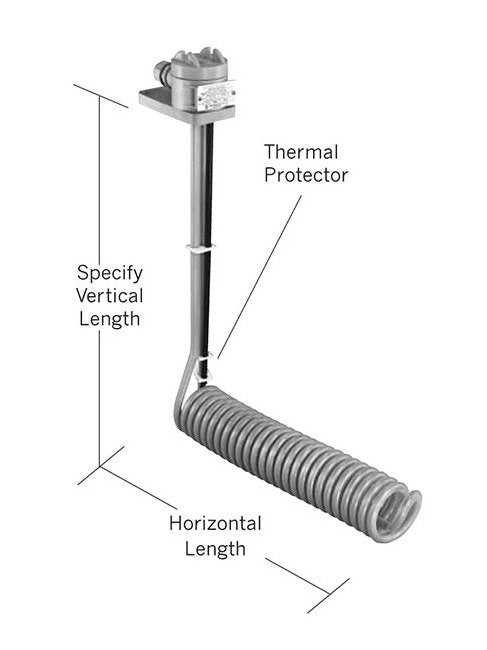

The HXL Series, Spiral L-Shaped Fluoropolymer (PTFE) Heaters are designed for precise heating, with a power output of 9000W and a watt density of 10 W/in². These single-phase heaters operate at 240V with a hot zone of 44" and a standard vertical length of 18". The heaters come with various thermal protectors suitable for different temperature ranges, ensuring safety and efficiency in heating solutions. With certifications including CE, CSA, and UL Listed, these heaters by Process Technology offer reliability and performance for industrial applications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXL44-R*G
Specifications Hot Zone
44 " | 1118 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXL Series
Specifications Shipping Weight
29.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
29.0 lbs | 13.2 kg
