HXL Series Spiral L-Shaped PTFE Heaters
HXL Series Spiral L-Shaped PTFE Heaters
SKU:HEA-d4d989
Efficient 5000W PTFE heaters with 10 W/in² density. CE, CSA, UL certified. Guards recommended for longevity.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
HXL Series Spiral L-Shaped PTFE Heaters
$699.99
Quantity: 1
Claim Your Seller Account
HXL Series Spiral L-Shaped PTFE Heaters
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

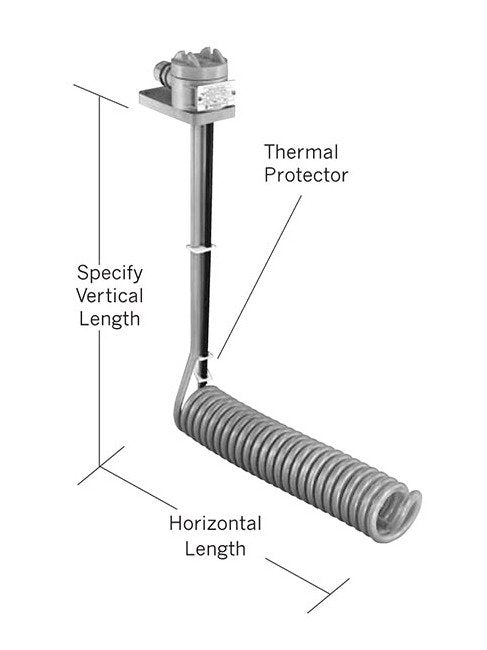

The HXL Series Spiral L-Shaped Fluoropolymer (PTFE) Heaters are designed for optimal performance in heating applications, offering 5000W power, 480V volts, and a hot zone of 24". With a watt density of 10 W/in², these heaters are suitable for various industrial scenarios while providing efficient heat transfer. Certified by CE, CSA, and UL, these heaters meet stringent quality and safety standards. Guards recommended to ensure longevity. Not ideal for electroless chemistry or phosphoric acid applications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXL24-R*G
Specifications Hot Zone
24 " | 610 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXL Series
Specifications Shipping Weight
18.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
