HXO Series PTFE Immersion Heaters with Thermal Overload Protection
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
SKU:HEA-60c811
Powerful 6000W HXO Series PTFE Heaters with thermal protection, perfect for corrosive solutions. CE and UL Listed.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
$499.99
Quantity: 1
Claim Your Seller Account
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXO Series Fluoropolymer (PTFE) Heaters are versatile immersion heaters designed for efficient heat transfer in corrosive environments. With a wattage of 6000W and precise thermal controls, these heaters are ideal for a wide range of solutions. The Fluoropolymer (PTFE) guards ensure durability and protection, especially for solutions exceeding 180°F. Certified by CE and UL Listed, these heaters from Process Technology offer superior performance and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO08-22-40G

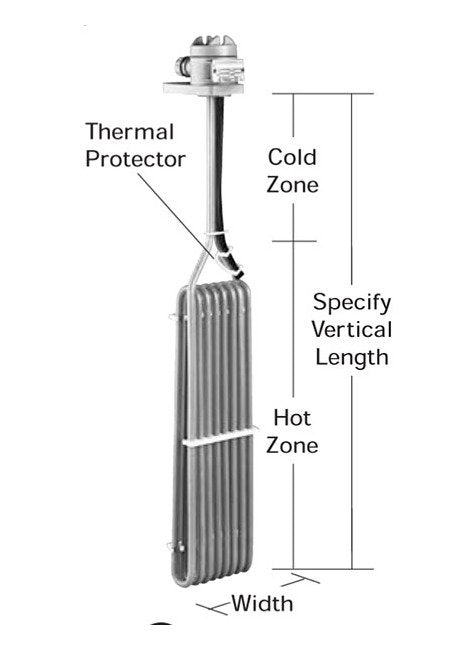

Specifications Hot Zone
22 " | 559 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
22.0 Pound
Specifications Std Cold Zone
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
Specifications Width
8 " | 203 mm
