HXO Series PTFE Immersion Heaters with Thermal Overload Protection
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
SKU:HEA-51fdb5
Powerful HXO Series PTFE Immersion Heaters with thermal protection and CE/UL certifications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
$249.99
Quantity: 1
Claim Your Seller Account
HXO Series PTFE Immersion Heaters with Thermal Overload Protection
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXO Series Fluoropolymer (PTFE) Immersion Heaters are designed for robust heating performance in industrial settings. Featuring a watt density of 10 W/in², these heaters deliver 2000W of power at 240V. With a standard guard made of polypropylene and the option for a Fluoropolymer (PTFE) guard for aggressive solutions, these heaters ensure safety and reliability. The inclusion of a replaceable or resettable thermal protector ensures protection against overheating. Certified by CE and UL Listed, these heaters meet stringent quality standards for peace of mind.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-10-17G

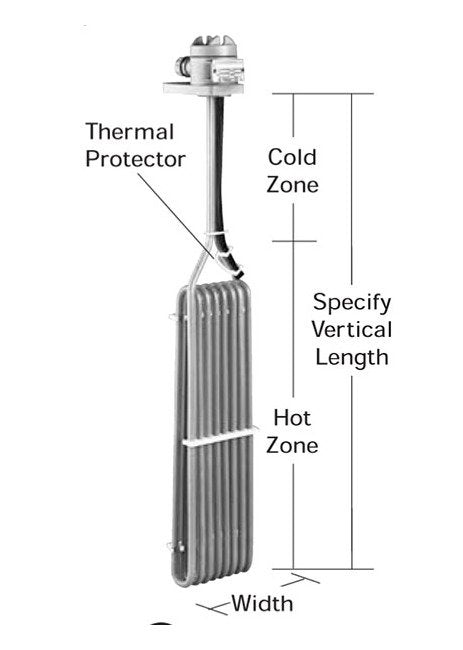

Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
8.0 Pound
Specifications Std Cold Zone
7 " | 178 mm
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
Specifications Width
6 " | 152 mm
