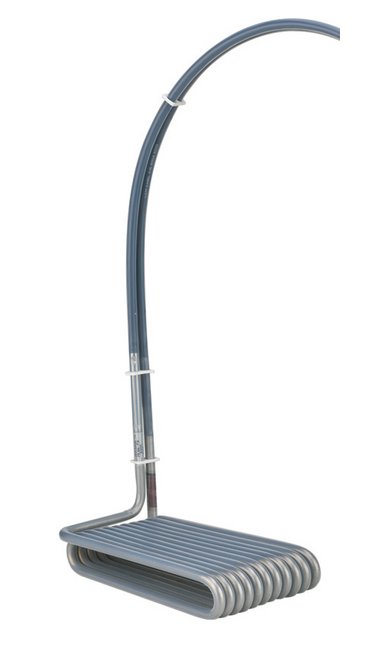

HXOL Series Flex Riser PTFE Heaters 480V 5000W
HXOL Series Flex Riser PTFE Heaters 480V 5000W
SKU:HEA-8ce397
High-performance 480V 5000W Flex Riser PTFE Heaters with Thermal Protection. Ideal for industrial processes. Customize for precise heating needs.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
HXOL Series Flex Riser PTFE Heaters 480V 5000W
$399.99
Quantity: 1
Claim Your Seller Account
HXOL Series Flex Riser PTFE Heaters 480V 5000W
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for industrial processes requiring precise, consistent heating. With a power output of 5000W at 480V, these heaters offer reliable single-phase operation. Featuring a Fluoropolymer (PTFE) guard as standard, they ensure safety and efficiency. The option to choose between flex and rigid riser lengths allows customization based on specific requirements. Thermal protectors like the Resettable Fuse (Type-J TC) enhance safety, making these heaters ideal for solutions up to 250°F (121°C). Consult the factory for various dimensional configurations to suit diverse applications.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL06-18G
Specifications Length
18 " | 457 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Weight
17.0 lbs | 7.7 kg
Specifications Width
6 " | 152 mm
