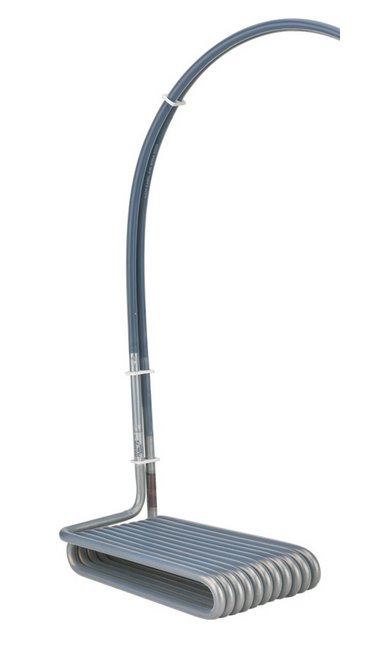

HXOL Series Flex Riser PTFE Heaters - Single Phase 5000W, 480V
HXOL Series Flex Riser PTFE Heaters - Single Phase 5000W, 480V
SKU:HEA-43a513
High-performance 5000W PTFE heaters for industrial use, single-phase with custom length options and thermal protection up to 250°F.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
HXOL Series Flex Riser PTFE Heaters - Single Phase 5000W, 480V
$799.99
Quantity: 1
Claim Your Seller Account
HXOL Series Flex Riser PTFE Heaters - Single Phase 5000W, 480V
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are precision-engineered for industrial applications, offering 5000W at 480V in a single-phase configuration. Equipped with a flex riser for customized length options and a Resettable Fuse (Type-J TC) thermal protector, these heaters provide reliable thermal overload protection for solutions up to 250°F. The standard Fluoropolymer (PTFE) guards ensure enhanced safety and longevity, making them ideal for process technology electric immersion heating requirements.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL09-11G
Specifications Length
11 " | 279 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Weight
17.0 lbs | 7.7 kg
Specifications Width
9 " | 229 mm
