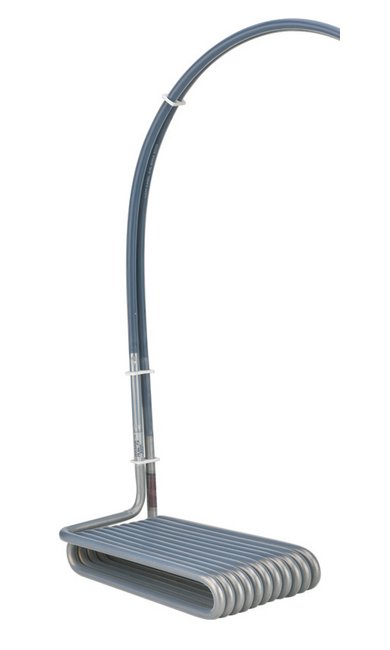

HXOL Series PTFE Heaters with Flex Riser
HXOL Series PTFE Heaters with Flex Riser
SKU:HEA-7fd242
High-performance HXOL Series PTFE Heaters ideal for industrial heating applications. Single-phase, 4000W, 480V with Resettable Fuse thermal protector and Fluoropolymer (PTFE) guards.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
HXOL Series PTFE Heaters with Flex Riser
$369.99
Quantity: 1
Claim Your Seller Account
HXOL Series PTFE Heaters with Flex Riser
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for superior performance and durability in industrial heating applications. With a power output of 4000W and a voltage rating of 480V, these heaters offer reliable single-phase heating. They come equipped with a Resettable Fuse thermal protector for safe operation up to temperatures ranging from 180°F to 250°F, depending on the riser configuration chosen. The Fluoropolymer (PTFE) guards provide enhanced protection, making them ideal for a wide range of solutions. Whether in the left or right riser position, these heaters ensure efficient heat transfer and easy installation, with customizable options available for specific dimensional requirements.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL08-11G
Specifications Length
11 " | 279 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Weight
14.0 lbs | 6.4 kg
Specifications Width
8 " | 203 mm
