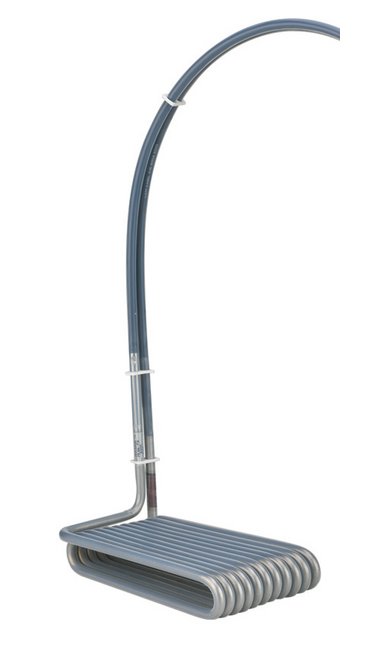

The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for single-phase applications with thermal overload protection. Featuring standard Fluoropolymer (PTFE) guards, these heaters offer flexibility with riser positions available on both left and right sides. With customizable dimensional configurations, these heaters ensure optimal performance and safety. Choose from various thermal protectors based on your solution temperature requirements. Consult the factory for specific options available.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL07-18G
Specifications Length
18 " | 457 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Weight
20.0 lbs | 9.1 kg
Specifications Width
7 " | 178 mm
