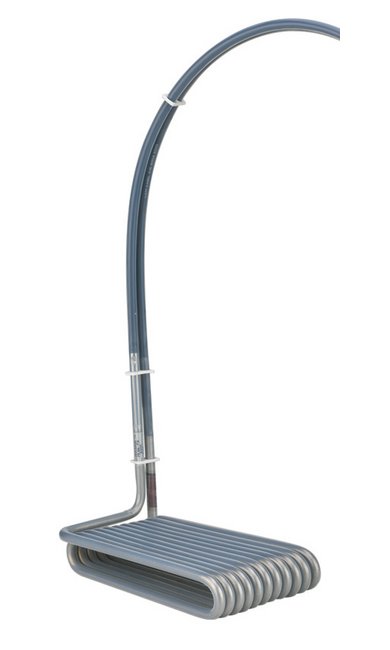

The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial processes. With a power output of 2000W at 240V, these heaters offer reliable single-phase operation. The heaters come with a standard Fluoropolymer (PTFE) guard for added safety. They are equipped with a variety of thermal protection options, including resettable fuse and replaceable fuse configurations, ensuring safe operation at different temperature ranges. The flexible riser design allows for easy installation in different positions, maximizing flexibility in process heating applications. Consult the factory for customized dimensional configurations to suit specific requirements.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL04-13G
Specifications Length
13 " | 330 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Weight
7.0 lbs | 3.2 kg
Specifications Width
4 " | 102 mm
