HXRL Flex Riser Fluoropolymer Heaters
HXRL Flex Riser Fluoropolymer Heaters
SKU:HEA-aa91a5
Experience efficient and safe heating with HXRL Flex Riser Fluoropolymer Heaters. cUL US Listed with PTFE guards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
HXRL Flex Riser Fluoropolymer Heaters
$349.99
Quantity: 1
Claim Your Seller Account
HXRL Flex Riser Fluoropolymer Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

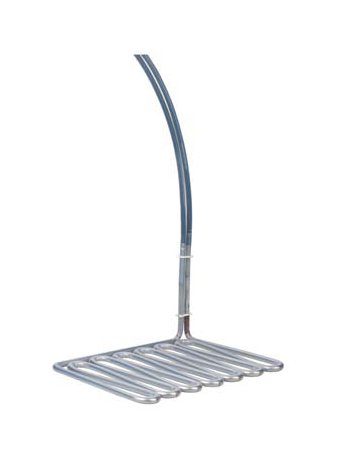

The HXRL Flex Riser Fluoropolymer Heaters offer superior heating performance with their 1000W power and 240V capacity. These single-phase heaters, with a width of 4" and length of 19", come with flexible risers for easy installation in either left or right front corner positions. The included Resettable Fuse thermal protector ensures safety, with options available for varying temperature solutions. Certified with cUL US Listing, these heaters feature standard PTFE guards for enhanced durability and reliability.
Product Specifications
Specifications Certifications
cUL US Listed
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXRL04-19G
Specifications Length
19 " | 483 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Weight
6.0 lbs | 2.7 kg
Specifications Width
4 " | 102 mm
