HXRL Series Flex Riser Fluoropolymer Heaters
HXRL Series Flex Riser Fluoropolymer Heaters
SKU:HEA-0bac72
Efficient single-phase Fluoropolymer Heaters with up to 4000W power, P3 thermal protector, and cUL US Listed certification.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
HXRL Series Flex Riser Fluoropolymer Heaters
$499.99
Quantity: 1
Claim Your Seller Account
HXRL Series Flex Riser Fluoropolymer Heaters
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

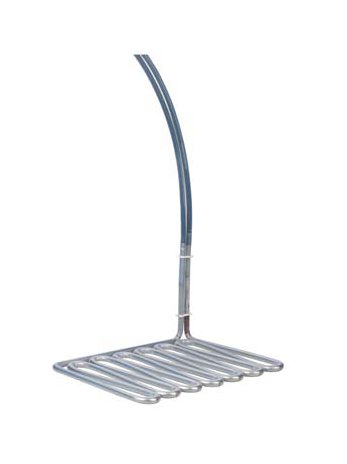

The HXRL Series Flex Riser Fluoropolymer Heaters offer reliable single-phase heating with a power range of 4000 watts at 240 volts. Featuring a width of 14" (356mm) and a length of 22" (559mm), these heaters come with a standard Flex Riser in either left or right position. They are equipped with thermal overload protection options such as P3 for temperatures up to 250°F, ensuring safety and performance. Certified to cUL US standards, these heaters include Fluoropolymer (PTFE) guards for enhanced durability and compliance.
Product Specifications
Specifications Certifications
cUL US Listed
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXRL14-22G
Specifications Length
22 " | 559 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Weight
14.0 lbs | 6.4 kg
Specifications Width
14 " | 356 mm
