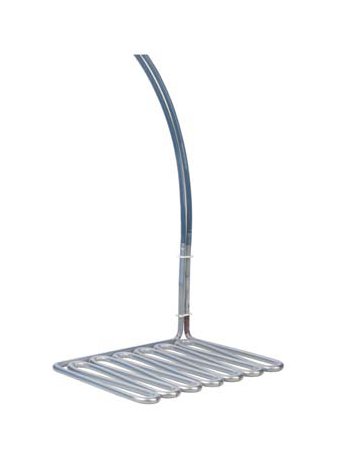

HXRL Series Flex Riser PTFE Heaters
HXRL Series Flex Riser PTFE Heaters
SKU:HEA-b83942
Reliable single-phase PTFE heaters with customizable options for safe and efficient operation. Suitable for process technology applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The HXRL Series Flex Riser Fluoropolymer (PTFE) Heaters offer reliable single-phase heating solutions with 1000W power and 240V voltage. Featuring customizable riser positions and options, these heaters are equipped with thermal overload protection for safe operation. The standard Fluoropolymer (PTFE) guards ensure enhanced durability and chemical resistance. Ideal for process technology applications, these heaters come with various thermal protector choices to suit solutions up to 250°F, meeting cUL US Listed safety certifications.
Product Specifications
Specifications Certifications
cUL US Listed
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXRL06-13G
Specifications Length
13 " | 330 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Weight
6.0 lbs | 2.7 kg
Specifications Width
6 " | 152 mm
