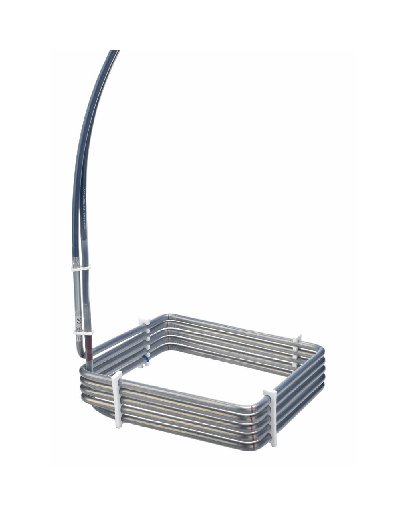

The HXSL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for efficient heating applications, featuring 5000W power capacity at 480V in a single phase setup. With a lightweight design of 17.0 lbs (7.7 kg), these heaters offer adjustable riser positions for versatile installations. Equipped with a variety of thermal protection options, including resettable and replaceable fuses, these heaters ensure safe operation in different temperature ranges. Additionally, consult with the factory for customized dimensional configurations to meet specific industrial requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Weight
17.0 lbs | 7.7 kg
