Hybrid 1000 Ammunition Bowl Feeders
Hybrid 1000 Ammunition Bowl Feeders
SKU:HYB-5e7077
Efficiently feed and align rounds with the Hybrid 1000 Ammo Bowl Feeders for seamless ammunition sealing processes.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Hybrid 1000 Ammunition Bowl Feeders
$2,799.99
Quantity: 1
Claim Your Seller Account
Hybrid 1000 Ammunition Bowl Feeders
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

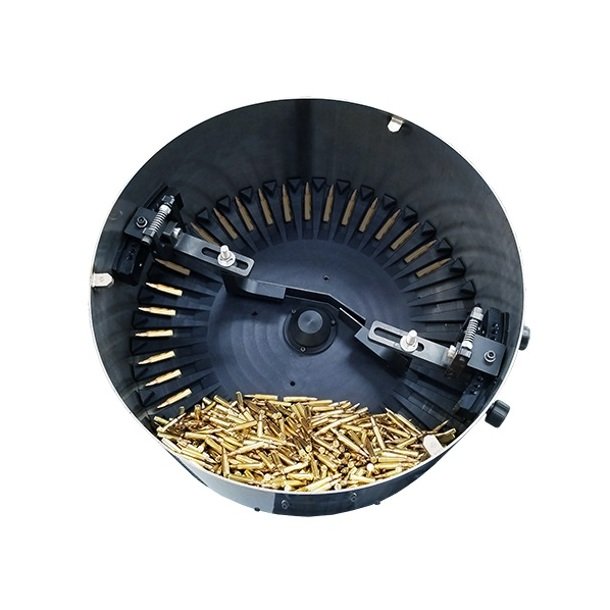

The Hybrid 1000 Ammunition Bowl Feeder by Hernon Manufacturing, Inc. is a high-capacity collator designed for efficiently feeding rounds onto the Autosealer® 5200 series machines. Capable of aligning and orienting rounds automatically, this feeder supports multiple calibers, with adjustable feeding rates up to 240 ppm. Its durable stainless steel and aluminum construction, along with easy tooling changeover capabilities, make it a versatile and reliable solution for ammunition sealing operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
High capacity; Capable of easily and continuously feeding 5200 series fast outputsAutomatically and consistently aligns and orients rounds before entering the sealing assembly lineFeed multiple calibers using the same base unit; Easy tooling changeover when sealing different calibers or cartridgesAdjustable feeding rates up to 240 ppm (caliber dependent)ZigZag sensors automatically detect low and high volumeAdjustable bowl angleSolid stainless steel and aluminum construction
Note Note
Capable with calibers up to 338 Lapua Magnum
System Includes System Includes
Bowl with diverter armslid and mounting baseMotor
Technical Specs Available Options
Caliber specific tooling (Dial, ZigZag and Discharge Block)
Technical Specs Brands
Hernon Manufacturing, Inc
Technical Specs Direct Current Dc Voltage
24 V
Technical Specs Output Range Caliber Dependent
0 to 240 ppm
Technical Specs Replacement Parts
Magnetic Lid: Part # 106021911Bowl Motor/Gearbox: Part # 102-393Dial Spacer: Part # 106022104
Technical Specs Warranty
Standard 1 year from purchase date
Technical Specs Weight
80 lb | 36.3 kg
