HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
SKU:HIG-8d1e43
State-of-the-art HYBRIDFLUSH ADA High Efficiency Flushing Check Valve, offers hybrid automatic/manual operation for unmatched reliability and efficiency.
Regular price
$265.99
Regular price
Sale price
$265.99
Unit price
per
Initiate Order
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
$265.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
$265.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

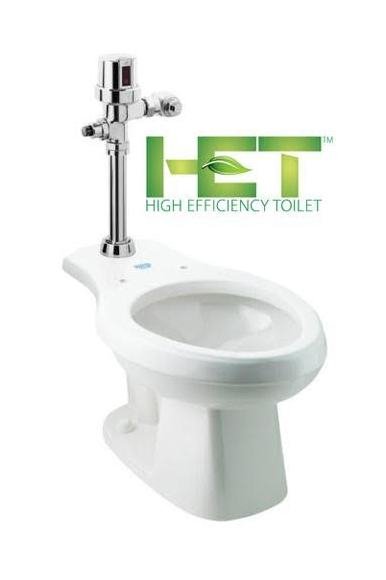

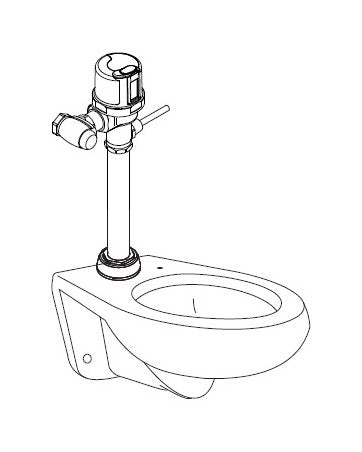

The HYBRIDFLUSH Automatic ADA Wall Hung High Efficiency Flushing Check Valve is a state-of-the-art, sensor-operated system suitable for both consumer and institutional needs. With a minimum flowing pressure of 25 psi and maximum static pressure of 80 psi, this top-mount complete system features an exposed automatic water closet flushometer and vitreous china fixture. Its hybrid operation allows for both automatic and manual flushing, ensuring reliability and efficiency. The innovative design includes features like adjustable sensor angle, ghost flush prevention, and a flush cycle ranging from 1.1 to 6.0 gpf, providing unmatched versatility and performance. The HYBRIDFLUSH by Advanced Modern Technologies Corporation is the epitome of efficiency and functionality in automatic flush valve systems.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Flush Cycle
1.1 gpf | 1.6 gpf | 4.2 lpf | 6.0 lpf
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
