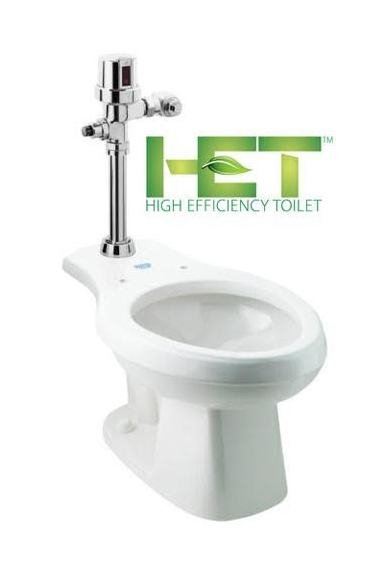

HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
SKU:HIG-4058bf
Top-notch ADA compliant automatic/manual flush valve system for high-efficiency flushing needs. Battery-powered with long-lasting battery life and compliant with ADA, ASME, Energy Act of 1992, ICC/ANSI, and Texas Accessibility Standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYBRIDFLUSH Automatic ADA Wall Hung Flushing Check Valve is a top-of-the-line solution for high-efficiency flushing needs. Powered by four AA alkaline batteries with a battery life exceeding 3 years, this hybrid system offers both automatic and manual operation for optimal reliability. The adjustable angle infrared sensor ensures precise flushing, while the unique patented mechanism allows for alternative flush options independent of battery power. Compliant with ADA standards, ASME, Energy Act of 1992, ICC/ANSI, Texas Accessibility Standards, and more, this product guarantees efficiency, economy, and reliability in every flush.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Mechanical Engineers (ASME) A112.19.2/CSA B45.1Energy Act of 1992Americans with Disabilities Act (ADA)- With installation consideration for section 604 Water Closets, Accessibility Guidelines.International Code Council (ICC)/American National Standards Institute (ANSI) A117.1Texas Accessibility Standards (TAS) - With installation consideration for section:4.16.3. Adult seat height 17 Inch (in) (432 Millimeter (mm)) to 19 Inch (in) (483 Millimeter (mm)).Canadian Standards Association (CSA) B651 - With installation consideration for Clause 4.3.6 of the standard.International Code Council Evaluation Service Paper Money Grading® (ICC-ES PMG) Certified
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications

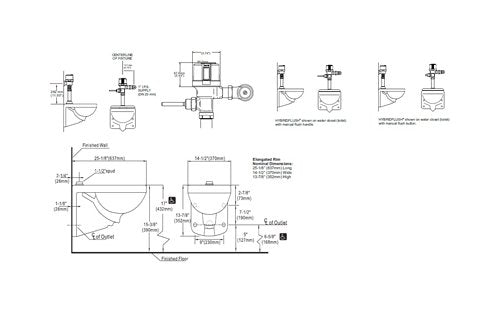

Complies with Americans with Disabilities Act (ADA) Accessible StandardsWhite ColorVitreous ChinaFloor Mount Water Closet BowlElongated Rim10 Inch (in) (254 Millimeter (mm)) Rough-In1-1/2 Inch (in) (38 Millimeter (mm)) I.P.S. Top Spud Inlet2 Inch (in) (50 Millimeter (mm)) Fully Glazed Trapway7-1/2 Inch (in) (190 Millimeter (mm)) x 8-1/2 Inch (in) (216 Millimeter (mm)) Water Surface AreaDirect Feed Jet100% Factory TestedToilet Seat Not Included
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
