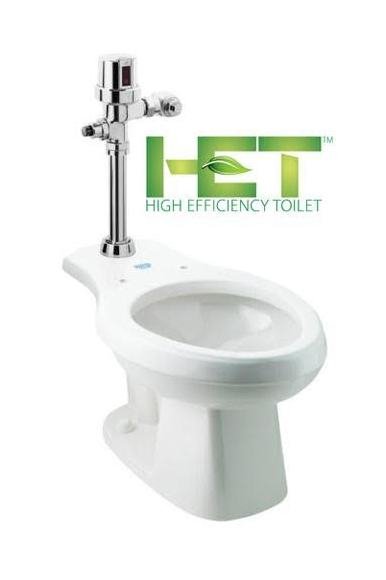

HYBRIDFLUSH® ADA Floor Mount Flush Valve with Automatic Water Closet Flushometer
HYBRIDFLUSH® ADA Floor Mount Flush Valve with Automatic Water Closet Flushometer
SKU:HIG-77f000
Efficient ADA Floor Mount Flush Valve with Automatic Water Closet Flushometer - Compliant with ADA standards
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
HYBRIDFLUSH® ADA Floor Mount Flush Valve with Automatic Water Closet Flushometer
$799.99
Quantity: 1
Claim Your Seller Account
HYBRIDFLUSH® ADA Floor Mount Flush Valve with Automatic Water Closet Flushometer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYBRIDFLUSH® ADA Floor Mount Flush Valve offers a revolutionary automatic/manual operation, combining efficiency and reliability. With a patented mechanism, this system ensures seamless flush options even without battery power. Compliant with ADA standards, this vitreous china fixture boasts a fully glazed trapway, direct feed jet, and factory testing for quality assurance.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Mechanical Engineers (ASME) A112.19.2/CSA B45.1Energy Act of 1992Americans with Disabilities Act (ADA)- With installation consideration for section 604 Water Closets, Accessibility Guidelines.International Code Council (ICC)/American National Standards Institute (ANSI) A117.1Texas Accessibility Standards (TAS) - With installation consideration for section:4.16.3. Adult seat height 17 Inch (in) (432 Millimeter (mm)) to 19 Inch (in) (483 Millimeter (mm)).Canadian Standards Association (CSA) B651 - With installation consideration for Clause 4.3.6 of the standard.International Code Council Evaluation Service Paper Money Grading® (ICC-ES PMG) Certified
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications

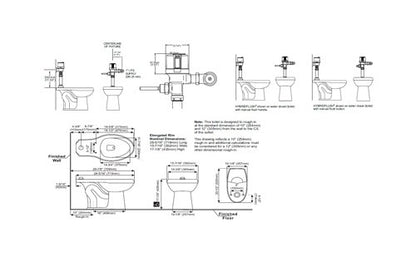

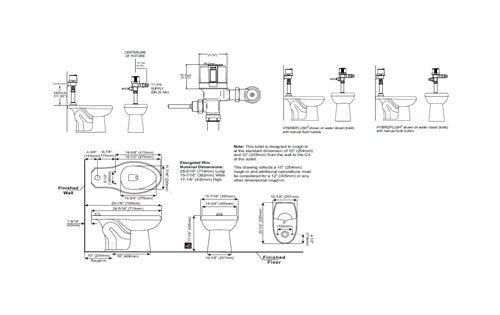

Complies with Americans with Disabilities Act (ADA) Accessible StandardsWhite ColorVitreous ChinaWall Hung Water Closet BowlElongated Rim10 Inch (in) (254 Millimeter (mm)) Rough-In1-1/2 Inch (in) (38 Millimeter (mm)) I.P.S. Top Spud Inlet2 Inch (in) (50 Millimeter (mm)) Fully Glazed Trapway11-1/2 Inch (in) (292 Millimeter (mm)) x 13 Inch (in) (330 Millimeter (mm)) Water Surface AreaDirect Feed Jet100% Factory TestedToilet Seat Not Included
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
