Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

HYD-8522b5

Reliable Hydac DF Series High Pressure In-Line Industrial Filter for precision filtration at 6090 psi, ensuring safety & compatibility.

$549.99
$549.99
Sale

Initiate Order

Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

$549.99

Quantity: 1

Claim Your Seller Account

Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

Hydac DF Series High Pressure In-Line Industrial Filter - 6090 PSI

$549.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Hydac DF Series High Pressure In-Line Industrial Filter is a robust solution designed for applications requiring precise filtration at up to 6090 psi and a flow capacity of 200 gpm. This filter boasts a non-welded housing design to prevent fatigue failure, offering maximum reliability. With diverse port configurations and O-ring seal options, it ensures compatibility with various fluids, making it ideal for industrial, automotive, and agricultural sectors. The inclusion of a poppet-type bypass valve and magnetic actuation enhances operational safety, making it suitable for critical environments.

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

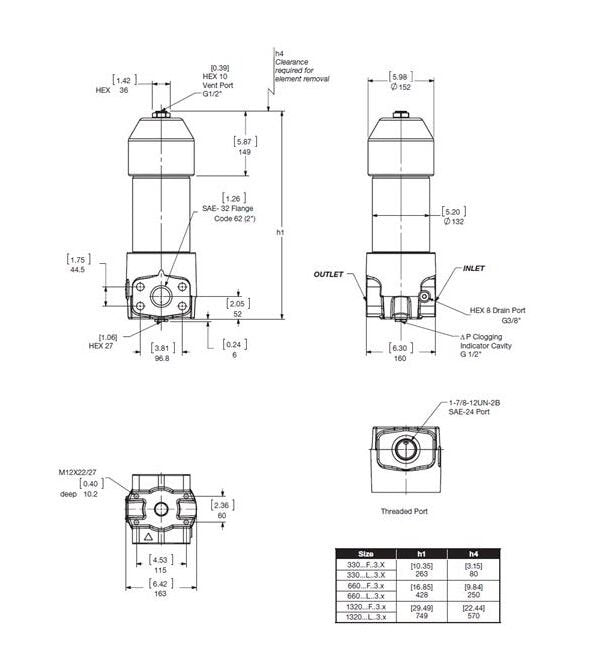

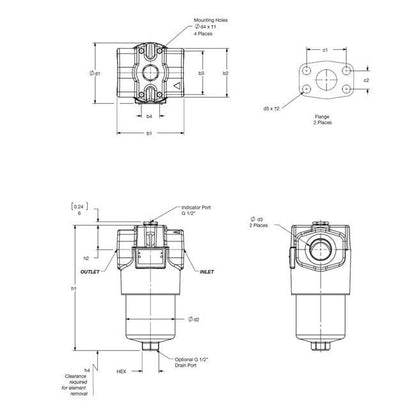

Dimensions Diameter D1
6.42 in | 163 mm
Dimensions Dimension B1
6.30 in | 160 mm
Dimensions Dimension B2
6.30 in | 160 mm
Dimensions Dimension B3
4.53 in | 115 mm
Dimensions Dimension B4
2.36 in | 60 mm
Dimensions Dimension D2
5.12 in | 130 mm
Dimensions Dimension D3
2 in.
Dimensions Dimension D4
1/2-20UNF- 2B
Dimensions Dimension H1
12.16 in | 309 mm
Dimensions Dimension H2
2.05 in | 52 mm
Dimensions Dimension H4
4.53 in | 115 mm
Dimensions Dimension T1
0.67 in | 17 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
B = Pop-up indicator (auto reset)
Specifications Model Code Description
DFBH/HC330TF10B1.0/12B3
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1 1/2 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
330
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
54.1 lb
Technical Specifications Burst Housing Pressure Rating
1040 bar | 15080 psi
Technical Specifications Bypass Valve
B3
Technical Specifications Bypass Valve Cracking Pressure
3 bar | 43 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
210 bar | 3045 psi
Technical Specifications Element K Factors
0.154
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Flow Capacity
87 gpm | 330 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
