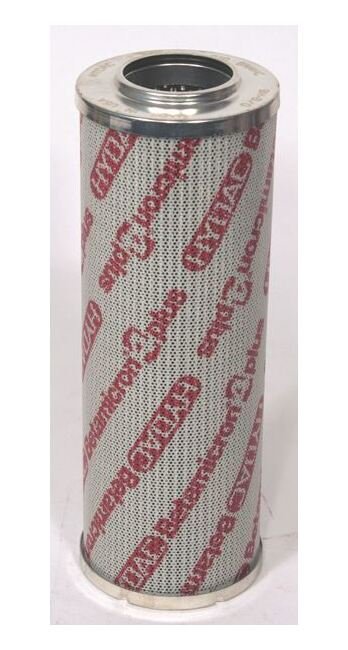

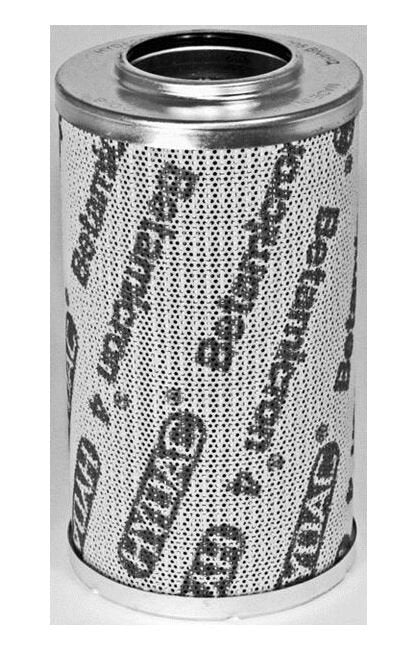

HYDAC DN 003 BN4HC Hydraulic Filter Element
HYDAC DN 003 BN4HC Hydraulic Filter Element
SKU:HYD-ea0b2a
Meet DIN Spec. 24550 standards with the HYDAC DN 003 BN4HC Hydraulic Filter Element. 3 µm Absolute Filter Rating, Fluoroelastomer seal, and high collapse resistance.
Regular price
$74.99
Regular price
Sale price
$74.99
Unit price
per
Initiate Order
HYDAC DN 003 BN4HC Hydraulic Filter Element
$74.99
Quantity: 1
Claim Your Seller Account
HYDAC DN 003 BN4HC Hydraulic Filter Element
$74.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC DN 003 BN4HC Hydraulic Filter Element is designed to meet the stringent requirements of DIN Spec. 24550 Filters. With an Absolute Filter Rating of 3 µm and the use of BN/HC Betamicron® Low Collapse media, this filter ensures exceptional filtration efficiency of up to 99.9%. It features a Fluoroelastomer (FPM) seal material, O-Ring and Closed End Caps, and a sturdy steel Support Tube. Operating temperature ranging from -30°C to 100°C, making it suitable for a wide range of applications. The filter also boasts a Collapse Rating of 20 bar, ensuring durability under high pressure conditions.
Product Specifications
Dimensions Inside Diameter
1.58 in | 40.1 mm
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
3.1 in | 80 mm
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Metal
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Open Cap, One closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.434 psi/gpm
Specifications Material
Microglass
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Model Code Description
0160 DN 003 BN4HC /-V-SO882
Specifications Nominal Filter Rating
3 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Size
0160
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
