HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
SKU:HYD-cb8ab7
High-efficiency HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 filters. Ensures 99.9% filtration efficiency with 10 µm absolute rating.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
$79.99
Quantity: 1
Claim Your Seller Account
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

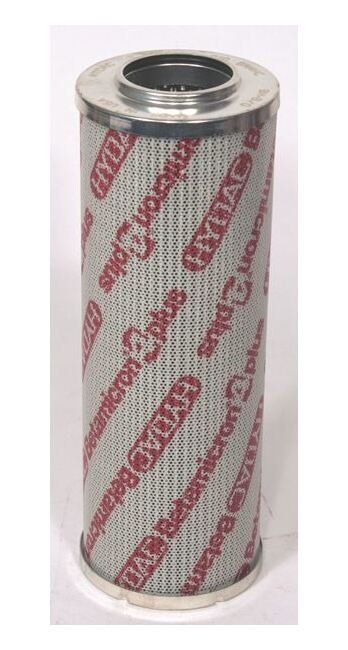

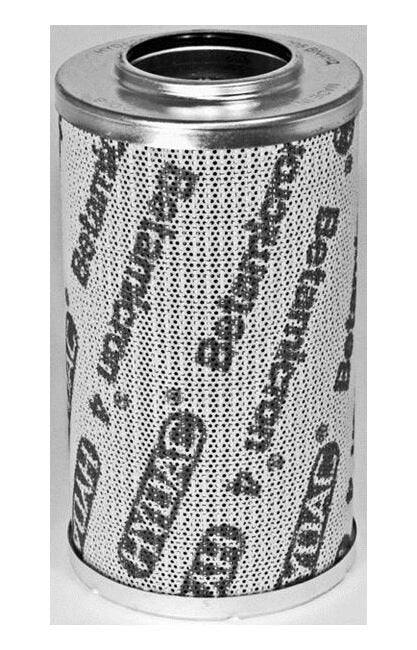

The HYDAC DN Hydraulic Filter Element is designed for DIN Spec. 24550 filters with a 10 µm absolute filter rating. Featuring Betamicron® Low Collapse media type and a Fluoroelastomer seal, this hydraulic filter element ensures efficient filtration with 99.9% efficiency. The cartridge-style element is constructed with Microglass material, one open cap, one closed end cap, and a steel support tube. Operating temperature ranging from -30°C to 100°C, it meets the highest standards for hydraulic and lube filters.
Product Specifications
Dimensions Inside Diameter
0.87 in | 22.1 mm
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
1.8 in | 45 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Open Cap, One closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.330 psi/gpm
Specifications Material
Microglass
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Model Code Description
0063 DN 010 BN4HC /-V
Specifications Nominal Filter Rating
10 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Size
0063
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
