HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
SKU:HYD-24ed35
Enhance filtration in hydraulic systems with the HYDAC DN 3µm Hydraulic Filter Element for DIN Spec. 24550 Filters.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
$69.99
Quantity: 1
Claim Your Seller Account
HYDAC DN Hydraulic Filter Element for DIN Spec. 24550 Filters
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

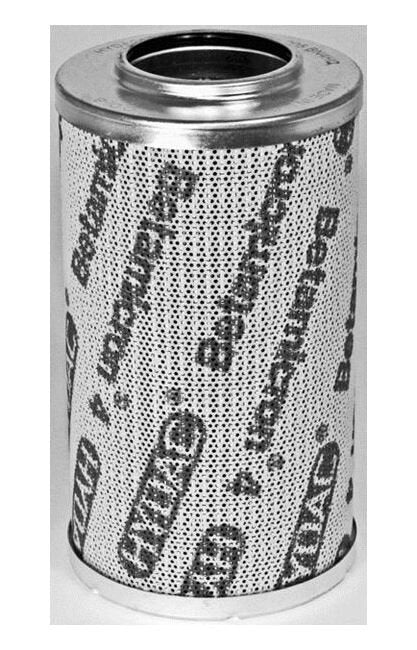

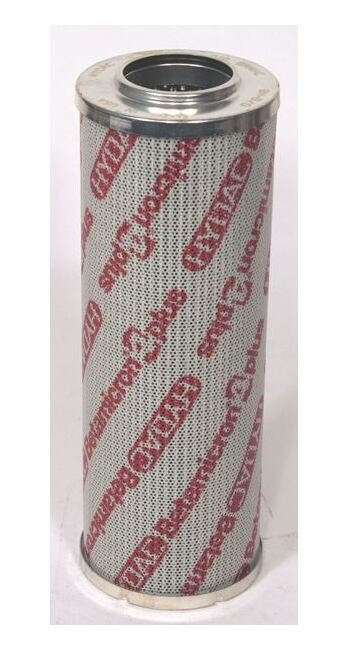

The HYDAC DN Hydraulic Filter Element is designed for DIN Spec. 24550 Filters, featuring an Absolute Filter Rating of 3 µm with BH/HC Betamicron® High Collapse media type. With a sturdy construction including Steel and Metal components, fluoroelastomer seals, and high-efficiency Microglass material, this cartridge-style element ensures superior filtration performance. Operating within a wide temperature range from -30°C to 100°C, it offers exceptional Beta Rating, collapse resistance, and a 99.9% efficiency, making it ideal for hydraulic systems requiring reliable filtration.
Product Specifications
Dimensions Inside Diameter
1.58 in | 40.1 mm
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
3.1 in | 80 mm
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Cap 1 Material
Steel
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Metal
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
210 bar
Specifications Configuration
One Open Cap, One closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.439 psi/gpm
Specifications Material
Microglass
Specifications Media Type
BH/HC=Betamicron® High Collapse
Specifications Model Code Description
0160 DN 003 BH4HC /-V-SO882
Specifications Nominal Filter Rating
3 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Size
0160
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
