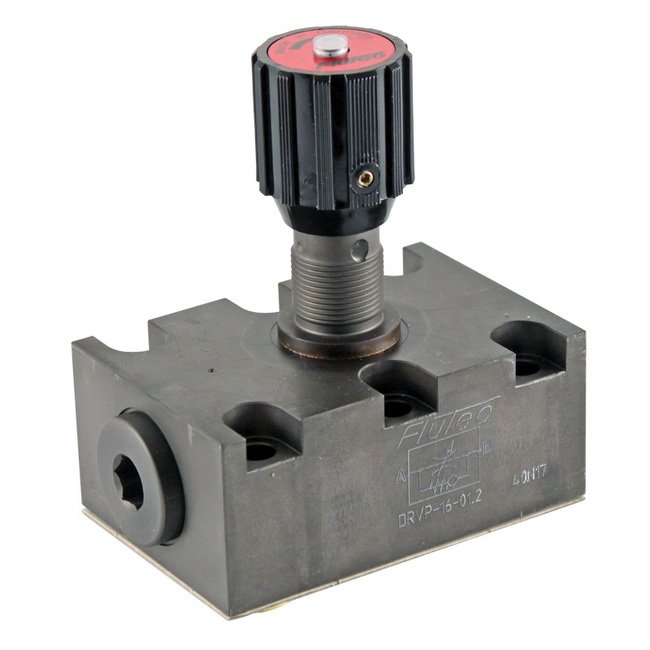

Hydac DRVP-06 Flow Control Valve with Check, Carbon Steel
Hydac DRVP-06 Flow Control Valve with Check, Carbon Steel
SKU:ACC-8241d3
Hydac DRVP-06 Flow Control Valve with Check: Precision flow control, durable carbon steel construction, and manifold mounting provision for industrial and government applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Hydac DRVP-06 Flow Control Valve with Check, Carbon Steel
$249.99
Quantity: 1
Claim Your Seller Account
Hydac DRVP-06 Flow Control Valve with Check, Carbon Steel
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydac DRVP-06 Flow Control Valve with Check is a precision-engineered valve designed for optimal flow control in hydraulic systems. Constructed from durable carbon steel, it features a unique safety spindle design and color-coded spindle for precise adjustments. With a pressure rating of 345 bar | 5000 psi and a cracking pressure of 7 psi, this valve ensures reliable performance under varying conditions. The provision for panel mounting and manifold mounting options enhance installation flexibility, making it ideal for industrial and government applications where strict standards are required.
Product Specifications
Dimensions Diameter G
0.94 in | 24 mm
Dimensions Dimension B
2.28 in | 58 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension J
7.48
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Dimension A
2.48 in | 63 mm
Specifications Dimension F
1.81 in | 46 mm
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Hex Size
19 in
Specifications Housing Material
Carbon Steel
Specifications Model Code Description
DRVP-06-01.X
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
0.57 kg | 0.26 lb
Specifications Worksheet Tab Name
Hydac
