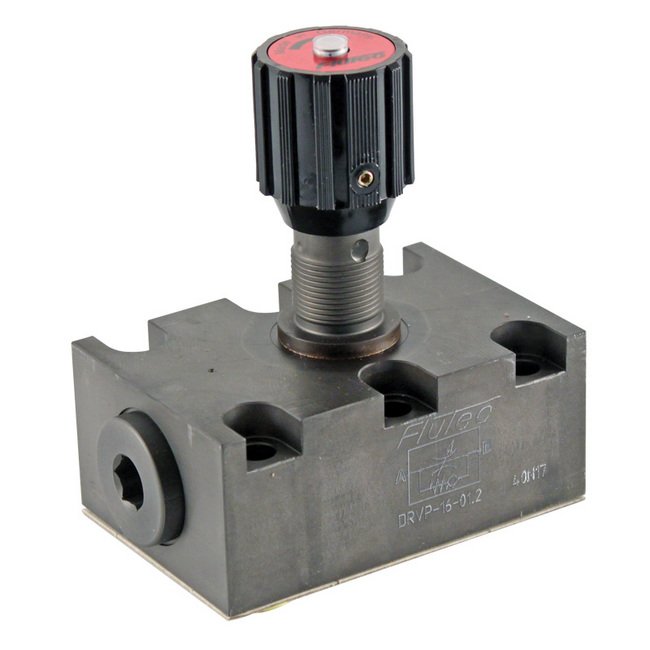

Hydac DRVP-16 Flow Control Valve with Check
Hydac DRVP-16 Flow Control Valve with Check
SKU:ACC-508580
Enhance flow control with Hydac DRVP-16 Valve, ideal for industrial applications. Durable, precise, and easy to install.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Hydac DRVP-16 Flow Control Valve with Check
$249.99
Quantity: 1
Claim Your Seller Account
Hydac DRVP-16 Flow Control Valve with Check
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydac DRVP-16 Flow Control Valve with Check is a precision-engineered valve designed for optimal flow control in industrial applications. Constructed from durable carbon steel, this valve offers a nominal size of 16 with a manifold mounting type for easy installation. Operating at pressures of up to 345 bar, it ensures reliable performance with a cracking pressure of 7 psi. With features like color-coded spindles for precise flow control and a unique safety spindle design, this valve is ideal for applications requiring high performance and accuracy. Its Zinc-plated finish enhances durability, making it a reliable choice for both consumer and institutional buyers.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Dimension B
7.01 in | 178 mm
Dimensions Dimension C
1.48 in | 37.5 mm
Dimensions Dimension J
5.63
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Dimension A
7.68 in | 195 mm
Specifications Dimension F
7.72 in | 196 mm
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Hex Size
143 in
Specifications Housing Material
Carbon Steel
Specifications Model Code Description
DRVP-16-01.X
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
5.51 kg | 2.5 lb
Specifications Worksheet Tab Name
Hydac
