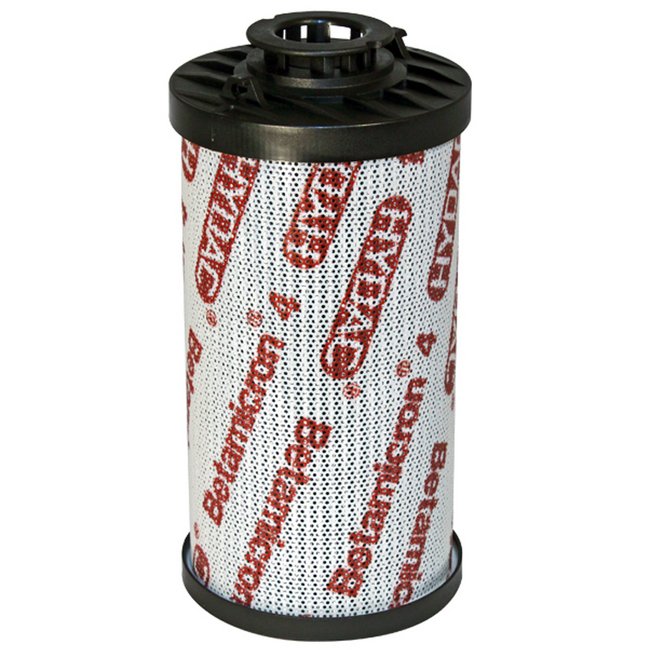

HYDAC Filter Element RN 0063 for DIN 24550 Filters
HYDAC Filter Element RN 0063 for DIN 24550 Filters
SKU:HYD-f005a5
Enhance filtration efficiency with HYDAC Filter Element RN 0063 for DIN 24550 Filters. 10 µm rating, Microglass material, and high durability make it ideal for industrial use.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
HYDAC Filter Element RN 0063 for DIN 24550 Filters
$75.99
Quantity: 1
Claim Your Seller Account
HYDAC Filter Element RN 0063 for DIN 24550 Filters
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet stringent hydraulic filtration demands with the HYDAC Filter Element RN 0063 designed for DIN 24550 Filters. This cartridge-style element features a 10 µm filter rating, Microglass filter material, and a Fluoroelastomer seal for optimal performance. With a Beta rating of ≥ 1000, efficiency of 99.9%, and collapse rating of 20 bar, this element ensures reliable filtration in industrial settings. Trusted by government agencies and institutions, this element is built to exceed industry standards for durability and performance.
Product Specifications
Dimensions Inside Diameter
32 mm | 1.26 in
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
2.4 in | 60 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3 bar | 43.5 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
Bypass Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.187 psi/gpm
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0063 RN 010 BN4HC /-V
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Fluoroelastomer (FPM)
Specifications Size
0063
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
