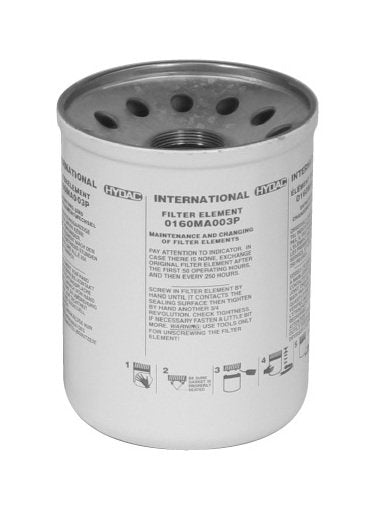

HYDAC Filter Elements MA for Spin-On Filters
HYDAC Filter Elements MA for Spin-On Filters
SKU:HYD-0fd74e
Efficient 3µm filtration in a durable Spin-On Can configuration, ideal for hydraulic systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC Filter Elements MA for Spin-On Filters
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC Filter Elements MA for Spin-On Filters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Filter Elements Type MA offer superior filtration for hydraulic systems, featuring a Filter Rating of 3µm and a durable Spin-On Can configuration. With polyester fleece/cellulose media and a nitrile rubber seal, these elements ensure efficient contaminant removal. Designed for operating temperatures from -30°C to 100°C, these elements provide reliable filtration performance. The steel support tube and collapse rating of 6 bar enhance durability, making them ideal for demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
6.5 in | 166 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Cellulose
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
P=Polyester Fleece / Cellulose
Specifications Model Code Description
0160MA003P
Specifications Nominal Filter Rating
3 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0160
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
