HYDAC Filter Elements MA for Spin-On Filters

HYDAC Filter Elements MA for Spin-On Filters

HYD-a79e69

Enhance hydraulic filtration with HYDAC Filter Elements MA for Spin-On Filters. 25 µm filter rating, durable construction, polyester fleece/cellulose media, -30°C to 100°C temperature range.

$29.99
$29.99
Sale

Initiate Order

HYDAC Filter Elements MA for Spin-On Filters

HYDAC Filter Elements MA for Spin-On Filters

$29.99

Quantity: 1

Claim Your Seller Account

HYDAC Filter Elements MA for Spin-On Filters

HYDAC Filter Elements MA for Spin-On Filters

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

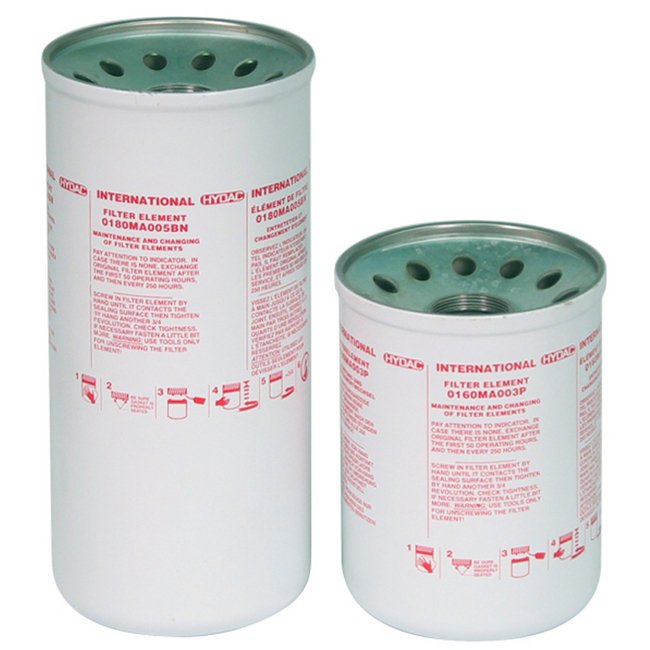

The HYDAC Filter Elements MA for Spin-On Filters are designed for optimal hydraulic filtration, featuring a 25 µm filter rating and a durable construction. These filter elements offer a spin-on can configuration with a UN thread type, making installation quick and efficient. Made with polyester fleece/cellulose media and a nitrile rubber seal, they ensure reliable performance in temperature ranges from -30°C to 100°C. With a collapse rating of 6 bar and steel support tube material, these elements deliver robust filtration capabilities for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Height
11 in | 279 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Cellulose
Specifications Filter Rating
25 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
P=Polyester Fleece / Cellulose
Specifications Model Code Description
0180MA025P
Specifications Nominal Filter Rating
25 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0180
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
