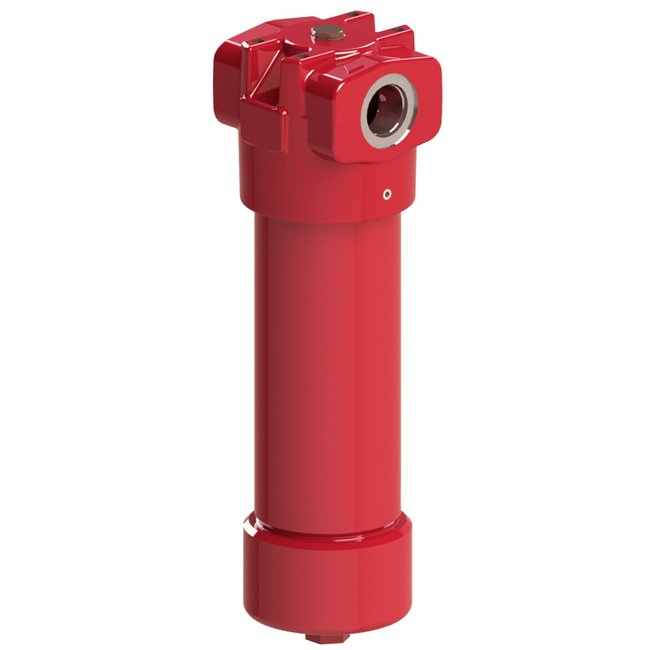

HYDAC HF3P Inline High Pressure Automotive Filter - 6090 PSI
HYDAC HF3P Inline High Pressure Automotive Filter - 6090 PSI
SKU:HYD-93be46
Trust the HYDAC HF3P Filter for superior performance in high-pressure applications. Reliable, efficient, and durable.
Regular price
$539.99
Regular price
Sale price
$539.99
Unit price
per
Initiate Order
HYDAC HF3P Inline High Pressure Automotive Filter - 6090 PSI
$539.99
Quantity: 1
Claim Your Seller Account
HYDAC HF3P Inline High Pressure Automotive Filter - 6090 PSI
$539.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC HF3P Inline High Pressure Automotive Filter is designed to meet the rigorous filtration needs of industrial and automotive applications. With a maximum operating pressure of 6090 PSI, this filter ensures optimal performance and efficiency. Features like the non-welded housing design, multiple porting options, and O-ring seals for reliable sealing make installation and maintenance convenient. The poppet-type bypass valve and differential pressure indicators enhance system reliability, while the element collapse pressure rating ensures safety. Trust the HYDAC HF3P filter for superior filtration and durability in high-pressure environments.
Product Specifications
Dimensions End Size
1-1/2 in
Dimensions Height
13.74 in | 349 mm
Dimensions Width
6.30 in | 160 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and SAE Flange porting (sizes 4"-16") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
B3
Specifications Bypass Valve Cracking Pressure
3 bar | 43 psid
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Straight Thread O-Ring Boss SAE 24 in. or SAE 16 in.
Specifications Filter Rating
12 µm
Specifications Flow
55 gpm | 208 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF3P-BN-08TF12C1.0/12B3
Specifications Mounting Type
Inline 4 Mounting Holes
Specifications Operating Pressure Max
420 bar | 6090 psi
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Type
High Pressure Filter
Specifications Weight
25.44 kg | 56.1 lb
